Material mapping workflow (source of truth)

Material mapping workflow (source of truth)

This page is the canonical reference for the ACTS Examples material mapping chain. It explains the end-to-end logic and points to the concrete scripts and tests that define current behavior.

Overview

Material mapping in the Examples pipeline is a three-step process:

1. Record material in detailed simulation (Geant4) Shoot particles through the detector's full simulation geometry and store material interactions per track.
2. Map recorded material onto ACTS tracking surfaces Collect surfaces configured to carry material (via ProtoSurfaceMaterial in geometry/material configuration), assign recorded interactions to these surfaces, and average into a compact material map.
3. Validate mapped material Propagate particles through the detector decorated with the produced map and record material tracks again for comparison against Geant4-based recording.

Scripts (ODD workflow)

The following scripts implement the three stages:

• Recording: Examples/Scripts/Python/material_recording.py
• Mapping: Examples/Scripts/Python/material_mapping.py
• Validation: Examples/Scripts/Python/material_validation.py

Example commands (Open Data Detector):

python material_recording.py -n1000 -t1000 -o odd_material_geant4
python material_mapping.py -n 1000000 -i odd_material_geant4 -o odd_material
python material_validation.py -n 1000 -t 1000 -m odd_material_map.root -o odd_material_validated -p

Remarks

Run these from Examples/Scripts/Python or prefix each command with python Examples/Scripts/Python/<script>.py ... from the repository root.

Step-by-step logic

1) Material recording (material_recording.py)

• Uses Geant4 material recording to create per-track material information.
• Produces a <output>.root ROOT file containing material tracks.
• Typical output for the command above: odd_material_geant4.root.

2) Material mapping (material_mapping.py)

• Reads recorded material tracks (RootMaterialTrackReader).
• Collects mappable surfaces from tracking geometry (trackingGeometry.extractMaterialSurfaces()).
• Builds assignment/accumulation components and performs averaging onto the selected surfaces.
• Writes mapped outputs using the chosen output stem:
  • <stem>_map.root and/or <stem>_map.json
  • <stem>_mapped.root
  • <stem>_unmapped.root

3) Material validation (material_validation.py)

• Decorates geometry from --map, then validates material response by producing material tracks from mapped material.
• Writes <output>.root with collection material_tracks by default.
• -p / --propagate enables an additional propagation/navigation-based collection, written as <output>_propagated.root, useful to expose potential navigation-related effects in material collection.

Comparison example

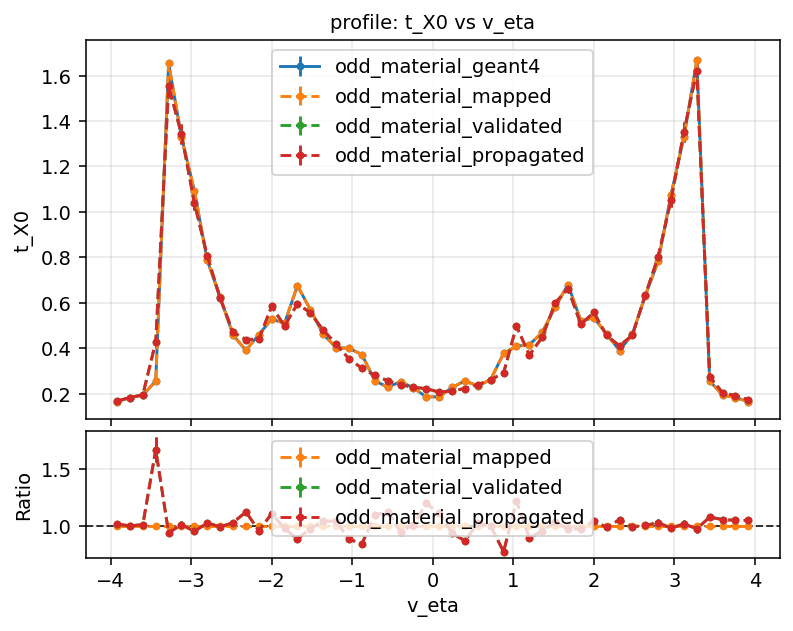

The figure below overlays Geant4, mapped, validated, and propagated profiles for t_X0 vs eta, with a ratio panel.

Overlay and ratio for material profiles.

Tests that guard this workflow

Primary tests live in Python/Examples/tests:

• Python/Examples/tests/conftest.py
  • material_recording_session fixture generates reusable Geant4 material tracks.
• Python/Examples/tests/test_examples.py
  • test_material_recording
  • test_material_mapping
• Python/Examples/tests/root_file_hashes.txt
  • Reference hashes for workflow outputs.

These tests are the executable reference for expected output structure and regression tracking.
