Class for a planaer in the TrackingGeometry. More...

#include <Acts/Surfaces/PlaneSurface.hpp>

Inheritance diagram for Acts::PlaneSurface:

Collaboration diagram for Acts::PlaneSurface:

Public Member Functions
void	assignSurfaceBounds (std::shared_ptr< const PlanarBounds > newBounds)
	Overwrite the existing surface bounds with new ones.
const SurfaceBounds &	bounds () const override
	Return method for bounds object of this surfrace.
const std::shared_ptr< const PlanarBounds > &	boundsPtr () const
	This method returns the shared_ptr to the DiscBounds.
Result< Vector2 >	globalToLocal (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, double tolerance=s_onSurfaceTolerance) const final
	Convert a global position to a local one this is the most generic interface, which is implemented by all surfaces.
Result< Vector2 >	globalToLocal (const GeometryContext &gctx, const Vector3 &position, double tolerance=s_onSurfaceTolerance) const override
	Global to local transformation.
MultiIntersection3D	intersect (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::Infinite(), double tolerance=s_onSurfaceTolerance) const final
	Straight line intersection.
ActsMatrix< 2, 3 >	localCartesianToBoundLocalDerivative (const GeometryContext &gctx, const Vector3 &position) const final
	Calculate the derivative of bound track parameters local position w.r.t.
Vector3	localToGlobal (const GeometryContext &gctx, const Vector2 &lposition) const override
	Local to global transformation.
Vector3	localToGlobal (const GeometryContext &gctx, const Vector2 &lposition, const Vector3 &direction) const final
	Local to global transformation.
std::pair< std::shared_ptr< PlaneSurface >, bool >	mergedWith (const PlaneSurface &other, AxisDirection direction, const Logger &logger=getDummyLogger()) const
	Merge two plane surfaces into a single one.
std::string	name () const override
	Return properly formatted class name for screen output.
Vector3	normal (const GeometryContext &gctx) const
	Get the normal vector, independent of the location.
Vector3	normal (const GeometryContext &gctx, const Vector2 &lposition) const final
	Get the normal vector of this surface at a given local position.
Vector3	normal (const GeometryContext &gctx, const Vector3 &pos, const Vector3 &direction) const final
	Calculate the normal vector of the surface This overload is fully generic, fulfills the Surface interface and accepts a global position and a direction.
Vector3	normal (const GeometryContext &gctx, const Vector3 &position) const final
	Get the normal vector of this surface at a given global position.
PlaneSurface &	operator= (const PlaneSurface &other)
	Assignment operator.
double	pathCorrection (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const final
	Method that calculates the correction due to incident angle.
Polyhedron	polyhedronRepresentation (const GeometryContext &gctx, unsigned int quarterSegments) const override
	Return a Polyhedron for the surfaces.
Vector3	referencePosition (const GeometryContext &gctx, AxisDirection aDir) const final
	The axis position is the position calculated for a certain axis type.
SurfaceType	type () const override
	Return the surface type.
Public Member Functions inherited from Acts::RegularSurface
Result< Vector2 >	globalToLocal (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, double tolerance=s_onSurfaceTolerance) const final
	Convert a global position to a local one this is the most generic interface, which is implemented by all surfaces.
bool	isOnSurface (const GeometryContext &gctx, const Vector3 &position, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None(), double tolerance=s_onSurfaceTolerance) const
	The geometric onSurface method.
bool	isOnSurface (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None(), double tolerance=s_onSurfaceTolerance) const
	The geometric onSurface method.
Vector3	localToGlobal (const GeometryContext &gctx, const Vector2 &lposition, const Vector3 &direction) const final
	Local to global transformation.
Vector3	normal (const GeometryContext &gctx, const Vector3 &pos, const Vector3 &direction) const final
	Calculate the normal vector of the surface This overload is fully generic, fulfills the Surface interface and accepts a global position and a direction.
	Surface (const GeometryContext &gctx, const Surface &other, const Transform3 &shift) noexcept
	Copy constructor with optional shift.
	Surface (const Surface &other) noexcept
	Copy constructor.
	Surface (const SurfacePlacementBase &placement) noexcept
	Constructor from SurfacePlacement: Element proxy.
	Surface (const Transform3 &transform=Transform3::Identity())
	Constructor with Transform3 as a shared object.
Public Member Functions inherited from Acts::Surface
	~Surface () noexcept override
AlignmentToBoundMatrix	alignmentToBoundDerivative (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const FreeVector &pathDerivative) const
	The derivative of bound track parameters w.r.t.
virtual AlignmentToPathMatrix	alignmentToPathDerivative (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Calculate the derivative of path length at the geometry constraint or point-of-closest-approach w.r.t.
void	assignDetectorElement (const SurfacePlacementBase &detelement)
	Assign a detector element.
void	assignIsSensitive (bool isSensitive)
	Assign whether the surface is sensitive.
void	assignSurfaceMaterial (std::shared_ptr< const ISurfaceMaterial > material)
	Assign the surface material description.
void	assignSurfacePlacement (const SurfacePlacementBase &placement)
	Assign a placement object which may dynamically align the surface in space.
void	assignThickness (double thick)
	Assign the thickness of the surface in the orthogonal dimension.
const DetectorElementBase *	associatedDetectorElement () const
	Return method for the associated Detector Element.
const Layer *	associatedLayer () const
	Return method for the associated Layer in which the surface is embedded.
void	associateLayer (const Layer &lay)
	Set Associated Layer Many surfaces can be associated to a Layer, but it might not be known yet during construction of the layer, this can be set afterwards.
virtual BoundToFreeMatrix	boundToFreeJacobian (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Calculate the jacobian from local to global which the surface knows best, hence the calculation is done here.
virtual Vector3	center (const GeometryContext &gctx) const
	Return method for the surface center.
virtual Vector2	closestPointOnBoundary (const Vector2 &lposition, const SquareMatrix2 &metric) const
	Calculates the closest point on the boundary of the surface to a given point in local coordinates.
virtual double	distanceToBoundary (const Vector2 &lposition) const
	Calculates the distance to the boundary of the surface from a given point in local coordinates.
virtual FreeToBoundMatrix	freeToBoundJacobian (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Calculate the jacobian from global to local which the surface knows best, hence the calculation is done here.
virtual FreeToPathMatrix	freeToPathDerivative (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Calculate the derivative of path length at the geometry constraint or point-of-closest-approach w.r.t.
std::shared_ptr< Surface >	getSharedPtr ()
	Retrieve a `std::shared_ptr` for this surface (non-const version).
std::shared_ptr< const Surface >	getSharedPtr () const
	Retrieve a `std::shared_ptr` for this surface (const version).
virtual bool	insideBounds (const Vector2 &lposition, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None()) const
	The insideBounds method for local positions.
bool	isAlignable () const
	Returns whether the Surface is alignable.
bool	isOnSurface (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None(), double tolerance=s_onSurfaceTolerance) const
	The geometric onSurface method.
bool	isSensitive () const
	Returns whether the Surface is sensitive.
const Transform3 &	localToGlobalTransform (const GeometryContext &gctx) const
	Return method for the surface Transform3 by reference In case a detector element is associated the surface transform is just forwarded to the detector element in order to keep the (mis-)alignment cache cetrally handled.
Surface &	operator= (const Surface &other)
	Assignment operator.
bool	operator== (const Surface &other) const
	Comparison (equality) operator The strategy for comparison is (a) first pointer comparison (b) then type comparison (c) then bounds comparison (d) then transform comparison.
virtual Acts::RotationMatrix3	referenceFrame (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Return method for the reference frame This is the frame in which the covariance matrix is defined (specialized by all surfaces).
const ISurfaceMaterial *	surfaceMaterial () const
	Return method for the associated Material to this surface.
const std::shared_ptr< const ISurfaceMaterial > &	surfaceMaterialSharedPtr () const
	Return method for the shared pointer to the associated Material.
const SurfacePlacementBase *	surfacePlacement () const
	Return the associated surface placement if there is any.
double	thickness () const
	Return the thickness of the surface in the normal direction.
GeometryContextOstreamWrapper< Surface >	toStream (const GeometryContext &gctx) const
	Helper method for printing: the returned object captures the surface and the geometry context and will print the surface.
std::string	toString (const GeometryContext &gctx) const
	Output into a std::string.
const Transform3 &	transform (const GeometryContext &gctx) const
	Return method for the surface Transform3 by reference In case a detector element is associated the surface transform is just forwarded to the detector element in order to keep the (mis-)alignment cache cetrally handled.
void	visualize (IVisualization3D &helper, const GeometryContext &gctx, const ViewConfig &viewConfig=s_viewSurface) const
	Visualize the surface for debugging and inspection.
Public Member Functions inherited from Acts::GeometryObject
	GeometryObject ()=default
	Defaulted constructor.
	GeometryObject (const GeometryIdentifier &geometryId)
	Constructor from a value.
	GeometryObject (const GeometryObject &)=default
	Defaulted copy constructor.
virtual	~GeometryObject () noexcept=default
void	assignGeometryId (const GeometryIdentifier &geometryId)
	Set the value.
GeometryIdentifier	geometryId () const
virtual double	referencePositionValue (const GeometryContext &gctx, AxisDirection aDir) const
	Implement the binningValue.

Protected Member Functions
	PlaneSurface (const GeometryContext &gctx, const PlaneSurface &other, const Transform3 &transform)
	Copy constructor - with shift.
	PlaneSurface (const PlaneSurface &other)
	Copy Constructor.
	PlaneSurface (const Transform3 &transform, std::shared_ptr< const PlanarBounds > pbounds=nullptr)
	Constructor for Planes with (optional) shared bounds object.
	PlaneSurface (std::shared_ptr< const PlanarBounds > pbounds, const SurfacePlacementBase &placement)
	Constructor from SurfacePlacementBase : Element proxy.
Protected Member Functions inherited from Acts::Surface
	Surface (const GeometryContext &gctx, const Surface &other, const Transform3 &shift) noexcept
	Copy constructor with optional shift.
	Surface (const Surface &other) noexcept
	Copy constructor.
	Surface (const SurfacePlacementBase &placement) noexcept
	Constructor from SurfacePlacement: Element proxy.
	Surface (const Transform3 &transform=Transform3::Identity())
	Constructor with Transform3 as a shared object.
virtual std::ostream &	toStreamImpl (const GeometryContext &gctx, std::ostream &sl) const
	Output Method for std::ostream, to be overloaded by child classes.

Protected Attributes
std::shared_ptr< const PlanarBounds >	m_bounds
	the bounds of this surface
Protected Attributes inherited from Acts::Surface
std::unique_ptr< const Transform3 >	m_transform {}
	Transform3 definition that positions (translation, rotation) the surface in global space.
Protected Attributes inherited from Acts::GeometryObject
GeometryIdentifier	m_geometryId
	Unique geometry identifier for this object.

Additional Inherited Members
Public Types inherited from Acts::Surface
enum	SurfaceType { Cone = 0 , Cylinder = 1 , Disc = 2 , Perigee = 3 , Plane = 4 , Straw = 5 , Curvilinear = 6 , Other = 7 }
	This enumerator simplifies the persistency & calculations, by saving a dynamic_cast, e.g. More...
Static Public Member Functions inherited from Acts::Surface
template<class T, typename... Args>
static std::shared_ptr< T >	makeShared (Args &&... args)
	Factory for producing memory managed instances of Surface.
Static Public Attributes inherited from Acts::Surface
static constexpr std::array< std::string_view, Surface::SurfaceType::Other+1 >	s_surfaceTypeNames
	Helper strings for screen output.

Detailed Description

Class for a planaer in the TrackingGeometry.

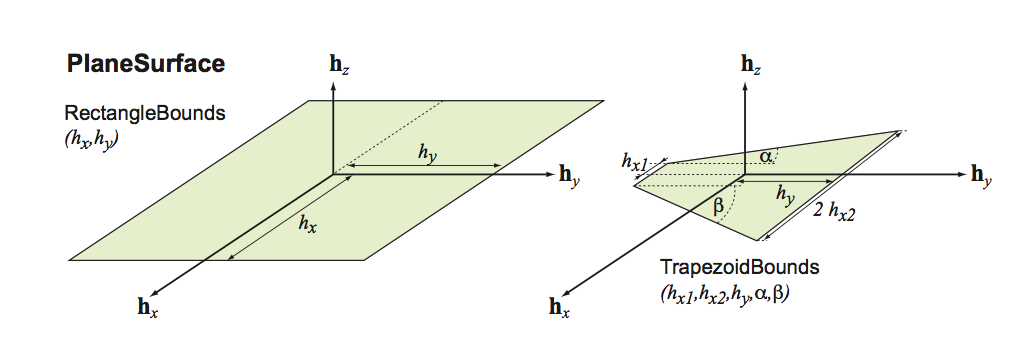

The PlaneSurface extends the Surface class with the possibility to convert local to global positions (vice versa).

Constructor & Destructor Documentation

◆ PlaneSurface() [1/4]

Acts::PlaneSurface::PlaneSurface ( const PlaneSurface & other )

protected

Copy Constructor.

Parameters

other is the source surface for the copy

◆ PlaneSurface() [2/4]

Acts::PlaneSurface::PlaneSurface	(	const GeometryContext &	gctx,
		const PlaneSurface &	other,
		const Transform3 &	transform )

protected

Copy constructor - with shift.

Parameters

gctx	The current geometry context object, e.g. alignment
other	is the source cone surface
transform	is the additional transform applied after copying

◆ PlaneSurface() [3/4]

Acts::PlaneSurface::PlaneSurface	(	std::shared_ptr< const PlanarBounds >	pbounds,
		const SurfacePlacementBase &	placement )

protected

Constructor from SurfacePlacementBase : Element proxy.

Parameters

pbounds	are the provided planar bounds
placement	Reference to the surface placement

Note: The Surface does not take any ownership over the SurfacePlacementBase it is expected that the user ensures the life-time of the SurfacePlacementBase and that the Surface is actually owned by the SurfacePlacementBase instance

◆ PlaneSurface() [4/4]

Acts::PlaneSurface::PlaneSurface	(	const Transform3 &	transform,
		std::shared_ptr< const PlanarBounds >	pbounds = nullptr )

explicitprotected

Constructor for Planes with (optional) shared bounds object.

Parameters

transform	transform in 3D that positions this surface
pbounds	bounds object to describe the actual surface area

Member Function Documentation

◆ assignSurfaceBounds()

void Acts::PlaneSurface::assignSurfaceBounds ( std::shared_ptr< const PlanarBounds > newBounds )

Overwrite the existing surface bounds with new ones.

Parameters

newBounds Pointer to the new bounds

◆ bounds()

const SurfaceBounds & Acts::PlaneSurface::bounds ( ) const

overridevirtual

Return method for bounds object of this surfrace.

Returns: Reference to the surface bounds

Implements Acts::Surface.

◆ boundsPtr()

const std::shared_ptr< const PlanarBounds > & Acts::PlaneSurface::boundsPtr ( ) const

This method returns the shared_ptr to the DiscBounds.

◆ globalToLocal() [1/2]

Result< Vector2 > Acts::RegularSurface::globalToLocal	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction,
		double	tolerance = s_onSurfaceTolerance ) const

finalvirtual

Convert a global position to a local one this is the most generic interface, which is implemented by all surfaces.

Note: The position is required to be on-surface, which is indicated by the Result return value.

Parameters

gctx	The current geometry context object, e.g. alignment
position	is the global position to be converted
direction	is the direction of the local position (ignored for `RegularSurface`)
tolerance	is the tolerance for the on-surface check

Returns: Result type containing local position by value

Implements Acts::Surface.

◆ globalToLocal() [2/2]

Result< Vector2 > Acts::PlaneSurface::globalToLocal	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		double	tolerance = s_onSurfaceTolerance ) const

overridevirtual

Global to local transformation.

Note: For planar surfaces the momentum direction is ignored in the global to local transformation

Parameters

gctx	The current geometry context object, e.g. alignment
position	global 3D position - considered to be on surface but not inside bounds (check is done)
tolerance	optional tolerance within which a point is considered valid on surface

Returns: a Result<Vector2> which can be !ok() if the operation fails

Implements Acts::RegularSurface.

◆ intersect()

MultiIntersection3D Acts::PlaneSurface::intersect	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction,
		const BoundaryTolerance &	boundaryTolerance = BoundaryTolerance::Infinite(),
		double	tolerance = s_onSurfaceTolerance ) const

finalvirtual

Straight line intersection.

Parameters

gctx	The current geometry context object, e.g. alignment
position	The start position of the intersection attempt
direction	The direction of the intersection attempt, (

Note: expected to be normalized)

Parameters

boundaryTolerance	The boundary check directive
tolerance	the tolerance used for the intersection

mathematical motivation:

the equation of the plane is given by:
\( \vec n \cdot \vec x = \vec n \cdot \vec p,\)
where \( \vec n = (n_{x}, n_{y}, n_{z})\) denotes the normal vector of the plane, \( \vec p = (p_{x}, p_{y}, p_{z})\) one specific point on the plane and \( \vec x = (x,y,z) \) all possible points on the plane.

Given a line with:
\( \vec l(u) = \vec l_{1} + u \cdot \vec v \),
the solution for \( u \) can be written: \( u = \frac{\vec n (\vec p - \vec l_{1})}{\vec n \vec v}\)
If the denominator is 0 then the line lies:

either in the plane
perpendicular to the normal of the plane

Returns: the MultiIntersection3D object

Implements Acts::Surface.

◆ localCartesianToBoundLocalDerivative()

ActsMatrix< 2, 3 > Acts::PlaneSurface::localCartesianToBoundLocalDerivative	(	const GeometryContext &	gctx,
		const Vector3 &	position ) const

finalvirtual

Calculate the derivative of bound track parameters local position w.r.t.

position in local 3D Cartesian coordinates

Parameters

gctx	The current geometry context object, e.g. alignment
position	The position of the parameters in global

Returns: Derivative of bound local position w.r.t. position in local 3D cartesian coordinates

Implements Acts::Surface.

◆ localToGlobal() [1/2]

Vector3 Acts::PlaneSurface::localToGlobal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition ) const

overridevirtual

Local to global transformation.

Note: For planar surfaces the momentum direction is ignored in the local to global transformation

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	local 2D position in specialized surface frame

Returns: the global position by value

Implements Acts::RegularSurface.

◆ localToGlobal() [2/2]

Vector3 Acts::RegularSurface::localToGlobal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition,
		const Vector3 &	direction ) const

finalvirtual

Local to global transformation.

This is the most generic interface, which is implemented by all surfaces.

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	local 2D position in specialized surface frame
direction	global 3D momentum direction (ignored for `RegularSurface`)

Returns: The global position by value

Implements Acts::Surface.

◆ mergedWith()

std::pair< std::shared_ptr< PlaneSurface >, bool > Acts::PlaneSurface::mergedWith	(	const PlaneSurface &	other,
		AxisDirection	direction,
		const Logger &	logger = getDummyLogger() ) const

Merge two plane surfaces into a single one.

Note: The surfaces need to be compatible, i.e. have bounds that align along merging direction, and have the same bound size along the non-merging direction

Parameters

other	The other plane surface to merge with
direction	The direction: either `AxisX` or `AxisY`
logger	The logger to use

Returns: The merged plane surface and a boolean indicating if surfaces are reversed

Note: The returned boolean is false if this is left or counter-clockwise of other, and true if not.

◆ name()

std::string Acts::PlaneSurface::name ( ) const

overridevirtual

Return properly formatted class name for screen output.

Returns: String representation of the class name

Implements Acts::Surface.

◆ normal() [1/4]

Vector3 Acts::PlaneSurface::normal ( const GeometryContext & gctx ) const

Get the normal vector, independent of the location.

Parameters

gctx	The current geometry context object, e.g. alignment

Returns: The normal vector

◆ normal() [2/4]

Vector3 Acts::PlaneSurface::normal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition ) const

finalvirtual

Get the normal vector of this surface at a given local position.

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	is the local position is ignored

Returns: Normal vector as Vector3 by value

Implements Acts::RegularSurface.

◆ normal() [3/4]

Vector3 Acts::RegularSurface::normal	(	const GeometryContext &	gctx,
		const Vector3 &	pos,
		const Vector3 &	direction ) const

finalvirtual

Calculate the normal vector of the surface This overload is fully generic, fulfills the Surface interface and accepts a global position and a direction.

For RegularSurface this is equivalent to the normal overload, ignoring the direction

Parameters

gctx	The current geometry context object, e.g. alignment
pos	is the global position where the normal vector is constructed
direction	is the direction of the normal vector (ignored for `RegularSurface`)

Returns: Normal vector at the given position

Implements Acts::Surface.

◆ normal() [4/4]

Vector3 Acts::PlaneSurface::normal	(	const GeometryContext &	gctx,
		const Vector3 &	position ) const

finalvirtual

Get the normal vector of this surface at a given global position.

Note: The position is required to be on-surface.

Parameters

gctx	The current geometry context object, e.g. alignment
position	is the global positiono (for PlaneSurface this is ignored)

Returns: The normal vector

Implements Acts::RegularSurface.

◆ operator=()

PlaneSurface & Acts::PlaneSurface::operator= ( const PlaneSurface & other )

Assignment operator.

Parameters

other The source PlaneSurface for assignment

Returns: Reference to this PlaneSurface after assignment

◆ pathCorrection()

double Acts::PlaneSurface::pathCorrection	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction ) const

finalvirtual

Method that calculates the correction due to incident angle.

Parameters

gctx	The current geometry context object, e.g. alignment
position	global 3D position (ignored for PlaneSurface)
direction	global 3D momentum direction (ignored for PlaneSurface)

Returns: a double representing the scaling factor

Implements Acts::Surface.

◆ polyhedronRepresentation()

Polyhedron Acts::PlaneSurface::polyhedronRepresentation	(	const GeometryContext &	gctx,
		unsigned int	quarterSegments ) const

overridevirtual

Return a Polyhedron for the surfaces.

Parameters

gctx	The current geometry context object, e.g. alignment
quarterSegments	is the number of segments used to describe curved segments in a quarter of the phi range. If it is 1, then only the extrema points in phi are inserted next to the segment corners.

Note: for planar surfaces without curved segments quarterSegments is ignored

Returns: A list of vertices and a face/facett description of it

Implements Acts::Surface.

◆ referencePosition()

Vector3 Acts::PlaneSurface::referencePosition	(	const GeometryContext &	gctx,
		AxisDirection	aDir ) const

finalvirtual

The axis position is the position calculated for a certain axis type.

Parameters

gctx	The current geometry context object, e.g. alignment
aDir	is the axis direction of reference position request

Returns: position that can be used for this axis

Implements Acts::GeometryObject.

◆ type()

SurfaceType Acts::PlaneSurface::type ( ) const

overridevirtual

Return the surface type.

Returns: Surface type identifier

Implements Acts::Surface.

Member Data Documentation

◆ m_bounds

std::shared_ptr<const PlanarBounds> Acts::PlaneSurface::m_bounds

protected

the bounds of this surface

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PlaneSurface() [1/4]

◆ PlaneSurface() [2/4]

◆ PlaneSurface() [3/4]

◆ PlaneSurface() [4/4]

Member Function Documentation

◆ assignSurfaceBounds()

◆ bounds()

◆ boundsPtr()

◆ globalToLocal() [1/2]

◆ globalToLocal() [2/2]

◆ intersect()

◆ localCartesianToBoundLocalDerivative()

◆ localToGlobal() [1/2]

◆ localToGlobal() [2/2]

◆ mergedWith()

◆ name()

◆ normal() [1/4]

◆ normal() [2/4]

◆ normal() [3/4]

◆ normal() [4/4]

◆ operator=()

◆ pathCorrection()

◆ polyhedronRepresentation()

◆ referencePosition()

◆ type()

Member Data Documentation

◆ m_bounds
