Class for a disc surface (or a segment thereof). More...

#include <Acts/Surfaces/DiscSurface.hpp>

Inheritance diagram for Acts::DiscSurface:

Collaboration diagram for Acts::DiscSurface:

Public Member Functions
void	assignSurfaceBounds (std::shared_ptr< const DiscBounds > newBounds)
	Overwrite the existing surface bounds with new ones.
const SurfaceBounds &	bounds () const final
	This method returns the bounds by reference.
const std::shared_ptr< const DiscBounds > &	boundsPtr () const
	This method returns the shared_ptr to the DiscBounds.
BoundToFreeMatrix	boundToFreeJacobian (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const final
	Calculate the jacobian from local to global which the surface knows best, hence the calculation is done here.
FreeToBoundMatrix	freeToBoundJacobian (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const final
	Calculate the jacobian from global to local which the surface knows best, hence the calculation is done here.
Result< Vector2 >	globalToLocal (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, double tolerance=s_onSurfaceTolerance) const final
	Convert a global position to a local one this is the most generic interface, which is implemented by all surfaces.
Result< Vector2 >	globalToLocal (const GeometryContext &gctx, const Vector3 &position, double tolerance=s_onSurfaceTolerance) const final
	Global to local transformation.
Vector2	globalToLocalCartesian (const GeometryContext &gctx, const Vector3 &position, double tol=0.) const
	Special method for DiscSurface : global<->local from cartesian coordinates.
MultiIntersection3D	intersect (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::Infinite(), double tolerance=s_onSurfaceTolerance) const final
	Straight line intersection schema.
ActsMatrix< 2, 3 >	localCartesianToBoundLocalDerivative (const GeometryContext &gctx, const Vector3 &position) const final
	Calculate the derivative of bound track parameters local position w.r.t.
Vector3	localCartesianToGlobal (const GeometryContext &gctx, const Vector2 &lposition) const
	Special method for DiscSurface : local<->global transformation when provided cartesian coordinates.
Vector2	localCartesianToPolar (const Vector2 &lcart) const
	Special method for Disc surface : local<->local transformations polar <-> cartesian.
Vector2	localPolarToCartesian (const Vector2 &lpolar) const
	Special method for DiscSurface : local<->local transformations polar <-> cartesian.
Vector2	localPolarToLocalCartesian (const Vector2 &locpol) const
	Special method for DiscSurface : local<->local transformations polar <-> cartesian.
Vector3	localToGlobal (const GeometryContext &gctx, const Vector2 &lposition) const final
	Local to global transformation For planar surfaces the momentum direction is ignored in the local to global transformation.
Vector3	localToGlobal (const GeometryContext &gctx, const Vector2 &lposition, const Vector3 &direction) const final
	Local to global transformation.
std::pair< std::shared_ptr< DiscSurface >, bool >	mergedWith (const DiscSurface &other, AxisDirection direction, bool externalRotation, const Logger &logger=getDummyLogger()) const
	Merge two disc surfaces into a single one.
std::string	name () const override
	Return properly formatted class name for screen output.
Vector3	normal (const GeometryContext &gctx) const
	Get the normal vector, independent of the location.
Vector3	normal (const GeometryContext &gctx, const Vector2 &lposition) const final
	Normal vector return.
Vector3	normal (const GeometryContext &gctx, const Vector3 &pos, const Vector3 &direction) const final
	Calculate the normal vector of the surface This overload is fully generic, fulfills the Surface interface and accepts a global position and a direction.
Vector3	normal (const GeometryContext &gctx, const Vector3 &position) const final
	Get the normal vector of this surface at a given global position.
DiscSurface &	operator= (const DiscSurface &other)
	Assignment operator.
double	pathCorrection (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const final
	Path correction due to incident of the track.
Polyhedron	polyhedronRepresentation (const GeometryContext &gctx, unsigned int quarterSegments) const override
	Return a Polyhedron for the surfaces.
Vector3	referencePosition (const GeometryContext &gctx, AxisDirection aDir) const final
	A reference position for a given axis direction.
double	referencePositionValue (const GeometryContext &gctx, AxisDirection aDir) const final
	A reference position value for a given axis direction.
SurfaceType	type () const override
	Return the surface type.
Public Member Functions inherited from Acts::RegularSurface
Result< Vector2 >	globalToLocal (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, double tolerance=s_onSurfaceTolerance) const final
	Convert a global position to a local one this is the most generic interface, which is implemented by all surfaces.
bool	isOnSurface (const GeometryContext &gctx, const Vector3 &position, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None(), double tolerance=s_onSurfaceTolerance) const
	The geometric onSurface method.
bool	isOnSurface (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None(), double tolerance=s_onSurfaceTolerance) const
	The geometric onSurface method.
Vector3	localToGlobal (const GeometryContext &gctx, const Vector2 &lposition, const Vector3 &direction) const final
	Local to global transformation.
Vector3	normal (const GeometryContext &gctx, const Vector3 &pos, const Vector3 &direction) const final
	Calculate the normal vector of the surface This overload is fully generic, fulfills the Surface interface and accepts a global position and a direction.
	Surface (const GeometryContext &gctx, const Surface &other, const Transform3 &shift) noexcept
	Copy constructor with optional shift.
	Surface (const Surface &other) noexcept
	Copy constructor.
	Surface (const SurfacePlacementBase &placement) noexcept
	Constructor from SurfacePlacement: Element proxy.
	Surface (const Transform3 &transform=Transform3::Identity())
	Constructor with Transform3 as a shared object.
Public Member Functions inherited from Acts::Surface
	~Surface () noexcept override
AlignmentToBoundMatrix	alignmentToBoundDerivative (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const FreeVector &pathDerivative) const
	The derivative of bound track parameters w.r.t.
virtual AlignmentToPathMatrix	alignmentToPathDerivative (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Calculate the derivative of path length at the geometry constraint or point-of-closest-approach w.r.t.
void	assignDetectorElement (const SurfacePlacementBase &detelement)
	Assign a detector element.
void	assignIsSensitive (bool isSensitive)
	Assign whether the surface is sensitive.
void	assignSurfaceMaterial (std::shared_ptr< const ISurfaceMaterial > material)
	Assign the surface material description.
void	assignSurfacePlacement (const SurfacePlacementBase &placement)
	Assign a placement object which may dynamically align the surface in space.
void	assignThickness (double thick)
	Assign the thickness of the surface in the orthogonal dimension.
const DetectorElementBase *	associatedDetectorElement () const
	Return method for the associated Detector Element.
const Layer *	associatedLayer () const
	Return method for the associated Layer in which the surface is embedded.
void	associateLayer (const Layer &lay)
	Set Associated Layer Many surfaces can be associated to a Layer, but it might not be known yet during construction of the layer, this can be set afterwards.
virtual Vector3	center (const GeometryContext &gctx) const
	Return method for the surface center.
virtual Vector2	closestPointOnBoundary (const Vector2 &lposition, const SquareMatrix2 &metric) const
	Calculates the closest point on the boundary of the surface to a given point in local coordinates.
virtual double	distanceToBoundary (const Vector2 &lposition) const
	Calculates the distance to the boundary of the surface from a given point in local coordinates.
virtual FreeToPathMatrix	freeToPathDerivative (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Calculate the derivative of path length at the geometry constraint or point-of-closest-approach w.r.t.
std::shared_ptr< Surface >	getSharedPtr ()
	Retrieve a `std::shared_ptr` for this surface (non-const version).
std::shared_ptr< const Surface >	getSharedPtr () const
	Retrieve a `std::shared_ptr` for this surface (const version).
virtual bool	insideBounds (const Vector2 &lposition, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None()) const
	The insideBounds method for local positions.
bool	isAlignable () const
	Returns whether the Surface is alignable.
bool	isOnSurface (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction, const BoundaryTolerance &boundaryTolerance=BoundaryTolerance::None(), double tolerance=s_onSurfaceTolerance) const
	The geometric onSurface method.
bool	isSensitive () const
	Returns whether the Surface is sensitive.
const Transform3 &	localToGlobalTransform (const GeometryContext &gctx) const
	Return method for the surface Transform3 by reference In case a detector element is associated the surface transform is just forwarded to the detector element in order to keep the (mis-)alignment cache cetrally handled.
Surface &	operator= (const Surface &other)
	Assignment operator.
bool	operator== (const Surface &other) const
	Comparison (equality) operator The strategy for comparison is (a) first pointer comparison (b) then type comparison (c) then bounds comparison (d) then transform comparison.
virtual Acts::RotationMatrix3	referenceFrame (const GeometryContext &gctx, const Vector3 &position, const Vector3 &direction) const
	Return method for the reference frame This is the frame in which the covariance matrix is defined (specialized by all surfaces).
const ISurfaceMaterial *	surfaceMaterial () const
	Return method for the associated Material to this surface.
const std::shared_ptr< const ISurfaceMaterial > &	surfaceMaterialSharedPtr () const
	Return method for the shared pointer to the associated Material.
const SurfacePlacementBase *	surfacePlacement () const
	Return the associated surface placement if there is any.
double	thickness () const
	Return the thickness of the surface in the normal direction.
GeometryContextOstreamWrapper< Surface >	toStream (const GeometryContext &gctx) const
	Helper method for printing: the returned object captures the surface and the geometry context and will print the surface.
std::string	toString (const GeometryContext &gctx) const
	Output into a std::string.
const Transform3 &	transform (const GeometryContext &gctx) const
	Return method for the surface Transform3 by reference In case a detector element is associated the surface transform is just forwarded to the detector element in order to keep the (mis-)alignment cache cetrally handled.
void	visualize (IVisualization3D &helper, const GeometryContext &gctx, const ViewConfig &viewConfig=s_viewSurface) const
	Visualize the surface for debugging and inspection.
Public Member Functions inherited from Acts::GeometryObject
	GeometryObject ()=default
	Defaulted constructor.
	GeometryObject (const GeometryIdentifier &geometryId)
	Constructor from a value.
	GeometryObject (const GeometryObject &)=default
	Defaulted copy constructor.
virtual	~GeometryObject () noexcept=default
void	assignGeometryId (const GeometryIdentifier &geometryId)
	Set the value.
GeometryIdentifier	geometryId () const

Protected Member Functions
	DiscSurface (const DiscSurface &other)
	Copy Constructor.
	DiscSurface (const GeometryContext &gctx, const DiscSurface &other, const Transform3 &shift)
	Copy constructor - with shift.
	DiscSurface (const Transform3 &transform, double minhalfx, double maxhalfx, double minR, double maxR, double avephi=0., double stereo=0.)
	Constructor for Discs from Transform3, \( r_{min}, r_{max}, hx_{min}, hx_{max} \) This is n this case you have DiscTrapezoidBounds.
	DiscSurface (const Transform3 &transform, double rmin, double rmax, double hphisec=std::numbers::pi)
	Constructor for Discs from Transform3, \( r_{min}, r_{max} \).
	DiscSurface (const Transform3 &transform, std::shared_ptr< const DiscBounds > dbounds=nullptr)
	Constructor for Discs from Transform3 and shared DiscBounds.
	DiscSurface (std::shared_ptr< const DiscBounds > dbounds, const SurfacePlacementBase &placement)
	Constructor from SurfacePlacementBase : Element proxy.
Protected Member Functions inherited from Acts::Surface
	Surface (const GeometryContext &gctx, const Surface &other, const Transform3 &shift) noexcept
	Copy constructor with optional shift.
	Surface (const Surface &other) noexcept
	Copy constructor.
	Surface (const SurfacePlacementBase &placement) noexcept
	Constructor from SurfacePlacement: Element proxy.
	Surface (const Transform3 &transform=Transform3::Identity())
	Constructor with Transform3 as a shared object.
virtual std::ostream &	toStreamImpl (const GeometryContext &gctx, std::ostream &sl) const
	Output Method for std::ostream, to be overloaded by child classes.

Protected Attributes
std::shared_ptr< const DiscBounds >	m_bounds
	bounds (shared)
Protected Attributes inherited from Acts::Surface
std::unique_ptr< const Transform3 >	m_transform {}
	Transform3 definition that positions (translation, rotation) the surface in global space.
Protected Attributes inherited from Acts::GeometryObject
GeometryIdentifier	m_geometryId
	Unique geometry identifier for this object.

Additional Inherited Members
Public Types inherited from Acts::Surface
enum	SurfaceType { Cone = 0 , Cylinder = 1 , Disc = 2 , Perigee = 3 , Plane = 4 , Straw = 5 , Curvilinear = 6 , Other = 7 }
	This enumerator simplifies the persistency & calculations, by saving a dynamic_cast, e.g. More...
Static Public Member Functions inherited from Acts::Surface
template<class T, typename... Args>
static std::shared_ptr< T >	makeShared (Args &&... args)
	Factory for producing memory managed instances of Surface.
Static Public Attributes inherited from Acts::Surface
static constexpr std::array< std::string_view, Surface::SurfaceType::Other+1 >	s_surfaceTypeNames
	Helper strings for screen output.

Detailed Description

Class for a disc surface (or a segment thereof).

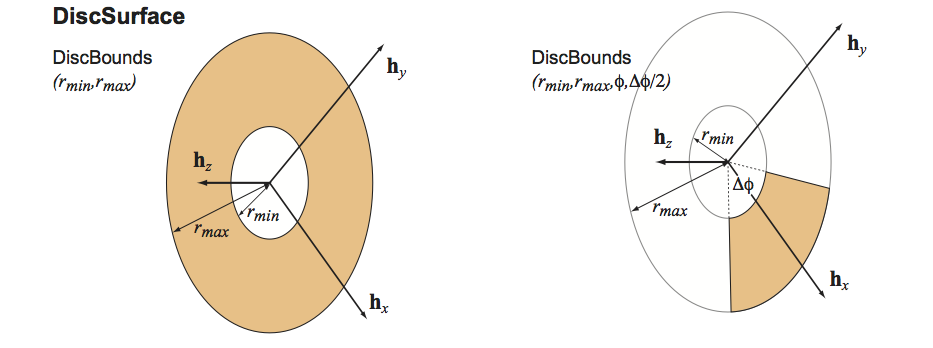

The DiscSurface is defined by the local polar coordinates \( (r,phi) \).

The surface transform positions the disc such that the origin is at \( r=0 \), independent of the provided DiscBounds. The normal vector of the disc (i.e., the local \(z\)-axis) is given by \( \vec e_{z} = \vec e_{r} \times\vec e_{phi} \).

The disc surface The only surface type for which the covariance matrix is NOT given in the reference frame. A conversion from polar to cartesian coordinates needs to happen to transfer the local coordinates onto the cartesian reference frame coordinates.

Constructor & Destructor Documentation

◆ DiscSurface() [1/6]

Acts::DiscSurface::DiscSurface	(	const Transform3 &	transform,
		double	rmin,
		double	rmax,
		double	hphisec = std::numbers::pi )

explicitprotected

Constructor for Discs from Transform3, \( r_{min}, r_{max} \).

Parameters

transform	is transform that places the disc in the global 3D space
rmin	The inner radius of the disc surface
rmax	The outer radius of the disc surface
hphisec	The opening angle of the disc surface and is optional the default is a full disc

◆ DiscSurface() [2/6]

Acts::DiscSurface::DiscSurface	(	const Transform3 &	transform,
		double	minhalfx,
		double	maxhalfx,
		double	minR,
		double	maxR,
		double	avephi = 0.,
		double	stereo = 0. )

explicitprotected

Constructor for Discs from Transform3, \( r_{min}, r_{max}, hx_{min}, hx_{max} \) This is n this case you have DiscTrapezoidBounds.

Parameters

transform	is transform that places the disc in the global 3D space
minhalfx	The half length in x at minimal r
maxhalfx	The half length in x at maximal r
minR	The outer radius of the disc surface
maxR	The inner radius of the disc surface
avephi	The position in phi (default is 0.)
stereo	The optional stereo angle

◆ DiscSurface() [3/6]

Acts::DiscSurface::DiscSurface	(	const Transform3 &	transform,
		std::shared_ptr< const DiscBounds >	dbounds = nullptr )

explicitprotected

Constructor for Discs from Transform3 and shared DiscBounds.

Parameters

transform	The transform that positions the disc in global 3D
dbounds	The disc bounds describing the surface coverage

◆ DiscSurface() [4/6]

Acts::DiscSurface::DiscSurface	(	std::shared_ptr< const DiscBounds >	dbounds,
		const SurfacePlacementBase &	placement )

explicitprotected

Constructor from SurfacePlacementBase : Element proxy.

Parameters

dbounds	The disc bounds describing the surface coverage
placement	Reference to the surface placement

Note: The Surface does not take any ownership over the SurfacePlacementBase it is expected that the user ensures the life-time of the SurfacePlacementBase and that the Surface is actually owned by the SurfacePlacementBase instance

◆ DiscSurface() [5/6]

Acts::DiscSurface::DiscSurface ( const DiscSurface & other )

protected

Copy Constructor.

Parameters

other The source surface for the copy

◆ DiscSurface() [6/6]

Acts::DiscSurface::DiscSurface	(	const GeometryContext &	gctx,
		const DiscSurface &	other,
		const Transform3 &	shift )

protected

Copy constructor - with shift.

Parameters

gctx	The current geometry context object, e.g. alignment
other	is the source cone surface
shift	is the additional transform applied after copying

Member Function Documentation

◆ assignSurfaceBounds()

void Acts::DiscSurface::assignSurfaceBounds ( std::shared_ptr< const DiscBounds > newBounds )

Overwrite the existing surface bounds with new ones.

Parameters

newBounds Pointer to the new bounds

◆ bounds()

const SurfaceBounds & Acts::DiscSurface::bounds ( ) const

finalvirtual

This method returns the bounds by reference.

Returns: Reference to the surface bounds

Implements Acts::Surface.

◆ boundsPtr()

const std::shared_ptr< const DiscBounds > & Acts::DiscSurface::boundsPtr ( ) const

This method returns the shared_ptr to the DiscBounds.

◆ boundToFreeJacobian()

BoundToFreeMatrix Acts::DiscSurface::boundToFreeJacobian	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction ) const

finalvirtual

Calculate the jacobian from local to global which the surface knows best, hence the calculation is done here.

Parameters

gctx	The current geometry context object, e.g. alignment
position	global 3D position
direction	global 3D momentum direction

Returns: Jacobian from local to global

Reimplemented from Acts::Surface.

◆ freeToBoundJacobian()

FreeToBoundMatrix Acts::DiscSurface::freeToBoundJacobian	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction ) const

finalvirtual

Calculate the jacobian from global to local which the surface knows best, hence the calculation is done here.

Parameters

gctx	The current geometry context object, e.g. alignment
position	global 3D position
direction	global 3D momentum direction

Returns: Jacobian from global to local

Reimplemented from Acts::Surface.

◆ globalToLocal() [1/2]

Result< Vector2 > Acts::RegularSurface::globalToLocal	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction,
		double	tolerance = s_onSurfaceTolerance ) const

finalvirtual

Convert a global position to a local one this is the most generic interface, which is implemented by all surfaces.

Note: The position is required to be on-surface, which is indicated by the Result return value.

Parameters

gctx	The current geometry context object, e.g. alignment
position	is the global position to be converted
direction	is the direction of the local position (ignored for `RegularSurface`)
tolerance	is the tolerance for the on-surface check

Returns: Result type containing local position by value

Implements Acts::Surface.

◆ globalToLocal() [2/2]

Result< Vector2 > Acts::DiscSurface::globalToLocal	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		double	tolerance = s_onSurfaceTolerance ) const

finalvirtual

Global to local transformation.

Note: the direction is ignored for Disc surfaces in this calculateion

Parameters

gctx	The current geometry context object, e.g. alignment
position	global 3D position - considered to be on surface but not inside bounds (check is done)
tolerance	optional tolerance within which a point is considered valid on surface

Returns: a Result<Vector2> which can be !ok() if the operation fails

Implements Acts::RegularSurface.

◆ globalToLocalCartesian()

Vector2 Acts::DiscSurface::globalToLocalCartesian	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		double	tol = 0. ) const

Special method for DiscSurface : global<->local from cartesian coordinates.

Parameters

gctx	The current geometry context object, e.g. alignment
position	is a global cartesian 3D position
tol	The absolute tolerance parameter

Returns: value is a local polar

◆ intersect()

MultiIntersection3D Acts::DiscSurface::intersect	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction,
		const BoundaryTolerance &	boundaryTolerance = BoundaryTolerance::Infinite(),
		double	tolerance = s_onSurfaceTolerance ) const

finalvirtual

Straight line intersection schema.

Parameters

gctx	The current geometry context object, e.g. alignment
position	The global position as a starting point
direction	The global direction at the starting point

Note: expected to be normalized (no checking)

Parameters

boundaryTolerance	The boundary check prescription
tolerance	the tolerance used for the intersection

Mathematical motivation:

the equation of the plane is given by:
\( \vec n \cdot \vec x = \vec n \cdot \vec p,\)
where \( \vec n = (n_{x}, n_{y}, n_{z})\) denotes the normal vector of the plane, \( \vec p = (p_{x}, p_{y}, p_{z})\) one specific point on the plane and \( \vec x = (x,y,z) \) all possible points on the plane.
Given a line with:
\( \vec l(u) = \vec l_{1} + u \cdot \vec v \),
the solution for \( u \) can be written: \( u = \frac{\vec n (\vec p - \vec l_{1})}{\vec n \vec v}\)
If the denominator is 0 then the line lies:

either in the plane
perpendicular to the normal of the plane

Returns: The MultiIntersection3D object

Implements Acts::Surface.

◆ localCartesianToBoundLocalDerivative()

ActsMatrix< 2, 3 > Acts::DiscSurface::localCartesianToBoundLocalDerivative	(	const GeometryContext &	gctx,
		const Vector3 &	position ) const

finalvirtual

Calculate the derivative of bound track parameters local position w.r.t.

position in local 3D Cartesian coordinates

Parameters

gctx	The current geometry context object, e.g. alignment
position	The position of the parameters in global

Returns: Derivative of bound local position w.r.t. position in local 3D cartesian coordinates

Implements Acts::Surface.

◆ localCartesianToGlobal()

Vector3 Acts::DiscSurface::localCartesianToGlobal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition ) const

Special method for DiscSurface : local<->global transformation when provided cartesian coordinates.

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	is local 2D position in cartesian coordinates

Returns: value is a global cartesian 3D position

◆ localCartesianToPolar()

Vector2 Acts::DiscSurface::localCartesianToPolar ( const Vector2 & lcart ) const

Special method for Disc surface : local<->local transformations polar <-> cartesian.

Parameters

lcart is local 2D position in cartesian coordinates

Returns: value is a local position in polar coordinates

◆ localPolarToCartesian()

Vector2 Acts::DiscSurface::localPolarToCartesian ( const Vector2 & lpolar ) const

Special method for DiscSurface : local<->local transformations polar <-> cartesian.

Parameters

lpolar is a local position in polar coordinates

Returns: values is local 2D position in cartesian coordinates

Todo: check

◆ localPolarToLocalCartesian()

Vector2 Acts::DiscSurface::localPolarToLocalCartesian ( const Vector2 & locpol ) const

Special method for DiscSurface : local<->local transformations polar <-> cartesian.

Parameters

locpol is a local position in polar coordinates

Returns: values is local 2D position in cartesian coordinates

◆ localToGlobal() [1/2]

Vector3 Acts::DiscSurface::localToGlobal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition ) const

finalvirtual

Local to global transformation For planar surfaces the momentum direction is ignored in the local to global transformation.

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	local 2D position in specialized surface frame

Returns: global position by value

Implements Acts::RegularSurface.

◆ localToGlobal() [2/2]

Vector3 Acts::RegularSurface::localToGlobal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition,
		const Vector3 &	direction ) const

finalvirtual

Local to global transformation.

This is the most generic interface, which is implemented by all surfaces.

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	local 2D position in specialized surface frame
direction	global 3D momentum direction (ignored for `RegularSurface`)

Returns: The global position by value

Implements Acts::Surface.

◆ mergedWith()

std::pair< std::shared_ptr< DiscSurface >, bool > Acts::DiscSurface::mergedWith	(	const DiscSurface &	other,
		AxisDirection	direction,
		bool	externalRotation,
		const Logger &	logger = getDummyLogger() ) const

Merge two disc surfaces into a single one.

Note: The surfaces need to be compatible, i.e. have disc bounds that align

Parameters

other	The other disc surface to merge with
direction	The binning direction: either `AxisR` or `AxisPhi`
externalRotation	If true, any phi rotation is done in the transform
logger	The logger to use

Returns: The merged disc surface and a boolean indicating if surfaces are reversed

Note: The returned boolean is false if this is left or counter-clockwise of other, and true if not.

◆ name()

std::string Acts::DiscSurface::name ( ) const

overridevirtual

Return properly formatted class name for screen output.

Returns: String representation of the class name

Implements Acts::Surface.

◆ normal() [1/4]

Vector3 Acts::DiscSurface::normal ( const GeometryContext & gctx ) const

Get the normal vector, independent of the location.

Parameters

gctx	The current geometry context object, e.g. alignment

Returns: The normal vector

◆ normal() [2/4]

Vector3 Acts::DiscSurface::normal	(	const GeometryContext &	gctx,
		const Vector2 &	lposition ) const

finalvirtual

Normal vector return.

Parameters

gctx	The current geometry context object, e.g. alignment
lposition	The local position is ignored

Returns: a Vector3 by value

Implements Acts::RegularSurface.

◆ normal() [3/4]

Vector3 Acts::RegularSurface::normal	(	const GeometryContext &	gctx,
		const Vector3 &	pos,
		const Vector3 &	direction ) const

finalvirtual

Calculate the normal vector of the surface This overload is fully generic, fulfills the Surface interface and accepts a global position and a direction.

For RegularSurface this is equivalent to the normal overload, ignoring the direction

Parameters

gctx	The current geometry context object, e.g. alignment
pos	is the global position where the normal vector is constructed
direction	is the direction of the normal vector (ignored for `RegularSurface`)

Returns: Normal vector at the given position

Implements Acts::Surface.

◆ normal() [4/4]

Vector3 Acts::DiscSurface::normal	(	const GeometryContext &	gctx,
		const Vector3 &	position ) const

finalvirtual

Get the normal vector of this surface at a given global position.

Note: The position is required to be on-surface.

Parameters

gctx	The current geometry context object, e.g. alignment
position	is the global positiono (for DiscSurface this is ignored)

Returns: The normal vector

Implements Acts::RegularSurface.

◆ operator=()

DiscSurface & Acts::DiscSurface::operator= ( const DiscSurface & other )

Assignment operator.

Parameters

other The source sourface for the assignment

Returns: Reference to this DiscSurface after assignment

◆ pathCorrection()

double Acts::DiscSurface::pathCorrection	(	const GeometryContext &	gctx,
		const Vector3 &	position,
		const Vector3 &	direction ) const

finalvirtual

Path correction due to incident of the track.

Parameters

gctx	The current geometry context object, e.g. alignment
position	The global position as a starting point
direction	The global momentum direction at the starting point

Returns: The correction factor due to incident

Implements Acts::Surface.

◆ polyhedronRepresentation()

Polyhedron Acts::DiscSurface::polyhedronRepresentation	(	const GeometryContext &	gctx,
		unsigned int	quarterSegments ) const

overridevirtual

Return a Polyhedron for the surfaces.

Parameters

gctx	The current geometry context object, e.g. alignment
quarterSegments	Number of segments used to describe the quarter of a full circle

Returns: A list of vertices and a face/facett description of it

Implements Acts::Surface.

◆ referencePosition()

Vector3 Acts::DiscSurface::referencePosition	(	const GeometryContext &	gctx,
		AxisDirection	aDir ) const

finalvirtual

A reference position for a given axis direction.

Parameters

gctx	The current geometry context object, e.g. alignment
aDir	The axis direction for the reference position request

Returns: position that can beused for this binning

Implements Acts::GeometryObject.

◆ referencePositionValue()

double Acts::DiscSurface::referencePositionValue	(	const GeometryContext &	gctx,
		AxisDirection	aDir ) const

finalvirtual

A reference position value for a given axis direction.

Parameters

gctx	The current geometry context object, e.g. alignment
aDir	the value generated for the reference position

Note: This calls the parent method except for AxisR

Returns: float to be used for the binning schema

Reimplemented from Acts::GeometryObject.

◆ type()

SurfaceType Acts::DiscSurface::type ( ) const

overridevirtual

Return the surface type.

Returns: Surface type identifier

Implements Acts::Surface.

Member Data Documentation

◆ m_bounds

std::shared_ptr<const DiscBounds> Acts::DiscSurface::m_bounds

protected

bounds (shared)

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DiscSurface() [1/6]

◆ DiscSurface() [2/6]

◆ DiscSurface() [3/6]

◆ DiscSurface() [4/6]

◆ DiscSurface() [5/6]

◆ DiscSurface() [6/6]

Member Function Documentation

◆ assignSurfaceBounds()

◆ bounds()

◆ boundsPtr()

◆ boundToFreeJacobian()

◆ freeToBoundJacobian()

◆ globalToLocal() [1/2]

◆ globalToLocal() [2/2]

◆ globalToLocalCartesian()

◆ intersect()

◆ localCartesianToBoundLocalDerivative()

◆ localCartesianToGlobal()

◆ localCartesianToPolar()

◆ localPolarToCartesian()

◆ localPolarToLocalCartesian()

◆ localToGlobal() [1/2]

◆ localToGlobal() [2/2]

◆ mergedWith()

◆ name()

◆ normal() [1/4]

◆ normal() [2/4]

◆ normal() [3/4]

◆ normal() [4/4]

◆ operator=()

◆ pathCorrection()

◆ polyhedronRepresentation()

◆ referencePosition()

◆ referencePositionValue()

◆ type()

Member Data Documentation

◆ m_bounds
